AMEXORS Flip-Up Binocular Dental Loupes 2.5X 3.5X Frame-Mounted 3W/5W LED Headlight
Combining a hinged flip-up Galilean binocular loupe with a clip-on 3W/5W portable LED headlight, this frame-mounted magnification system allows manual interpupillary distance (IPD) adjustment and delivers 15,000–30,000 Lux coaxial illumination across a 320–420mm working distance.
Key Specifications
Product Category: Frame-Mounted Flip-Up Dental Loupes with LED Headlight
Magnification Options: 2.5X or 3.5X Galilean Optical System
Working Distance: 320 mm – 420 mm
Field of View / Depth of Field: 100mm FOV & 90mm DOF (2.5X) | 60mm FOV & 80mm DOF (3.5X)
Mounting & Adjustment: Safety Eyeglass Frame with Flip-Up Hinge & Manual IPD Adjustment Knob
LED Headlight Output: 3W / 5W Options | 15,000 – 30,000 Lux Adjustable Brightness
Battery Runtime: Approx. 5 Hours Continuous Operation (Rechargeable Li-Ion Pack)
The AMEXORS Flip-Up Binocular Dental Loupes with LED Headlight provide a non-customized, multi-adjustable magnification and illumination solution for general dentistry, endodontics, and restorative procedures. Unlike Through-The-Lens (TTL) loupes that are permanently bonded to a single user's pupillary measurements, the flip-up hinge mechanism features an independent interpupillary distance (IPD) adjustment knob and variable declination angle. This allows dental distributors to stock standard units without custom prescription delays, and enables multiple clinicians within a practice to share or recalibrate the same loupe.
Two magnification configurations are available to match clinical preferences:
2.5X Magnification: Offers a wide 100mm field of view and 90mm depth of field, allowing clinicians to visualize the full dental quadrant while maintaining natural head movement.
3.5X Magnification: Provides higher optical resolution with a 60mm field of view and 80mm depth of field for detailed crown margin inspection and canal orifice identification.

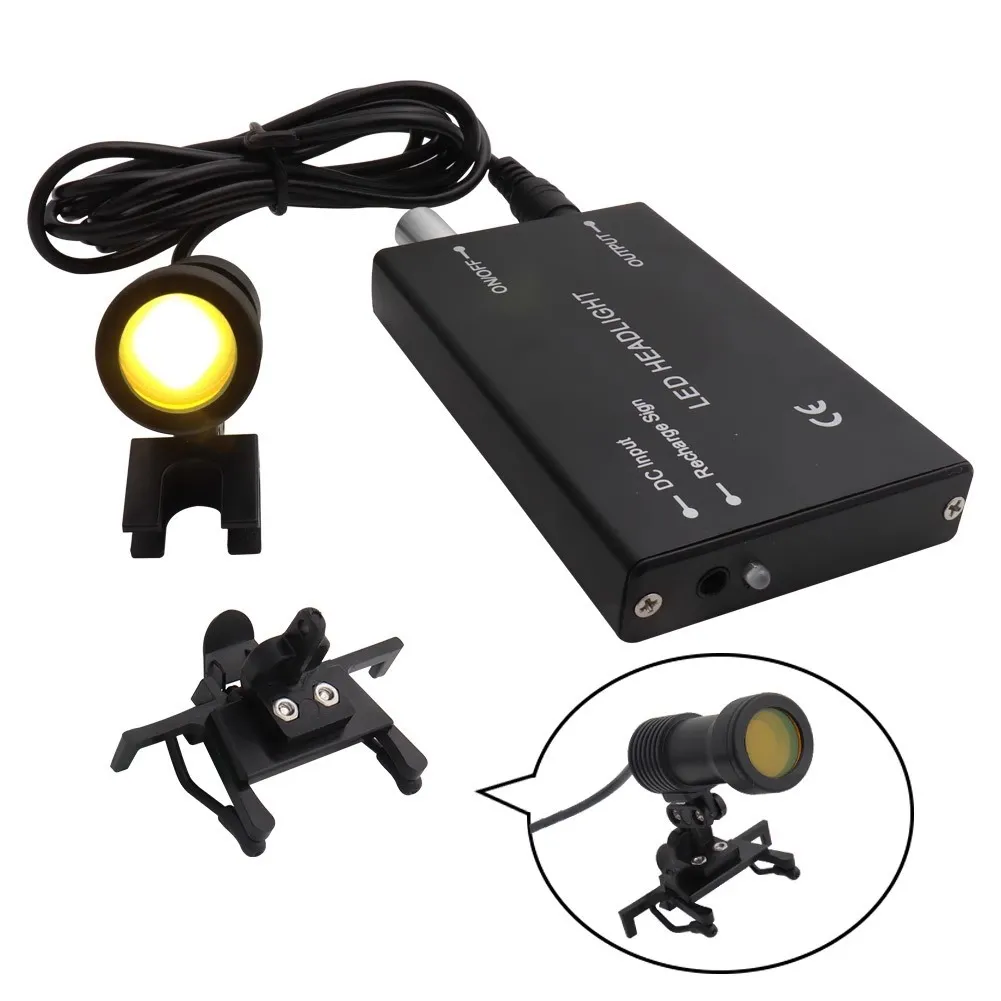

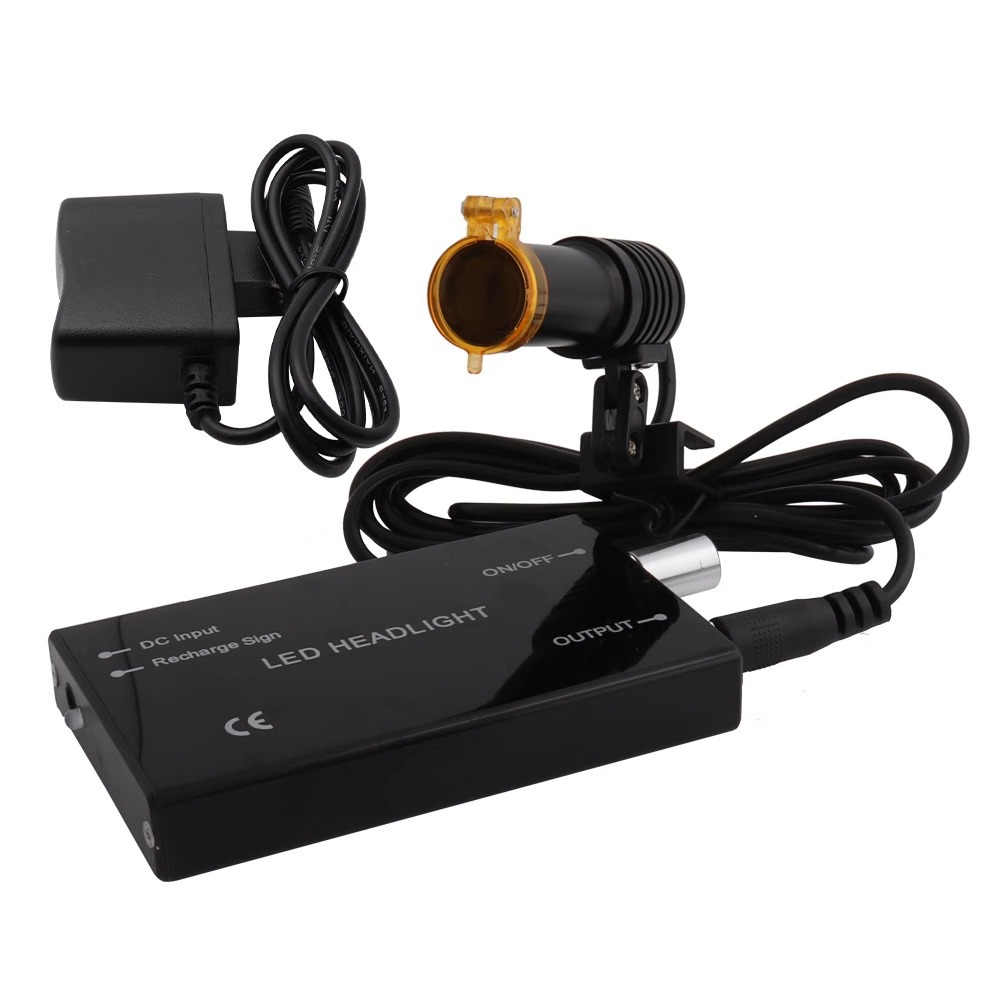

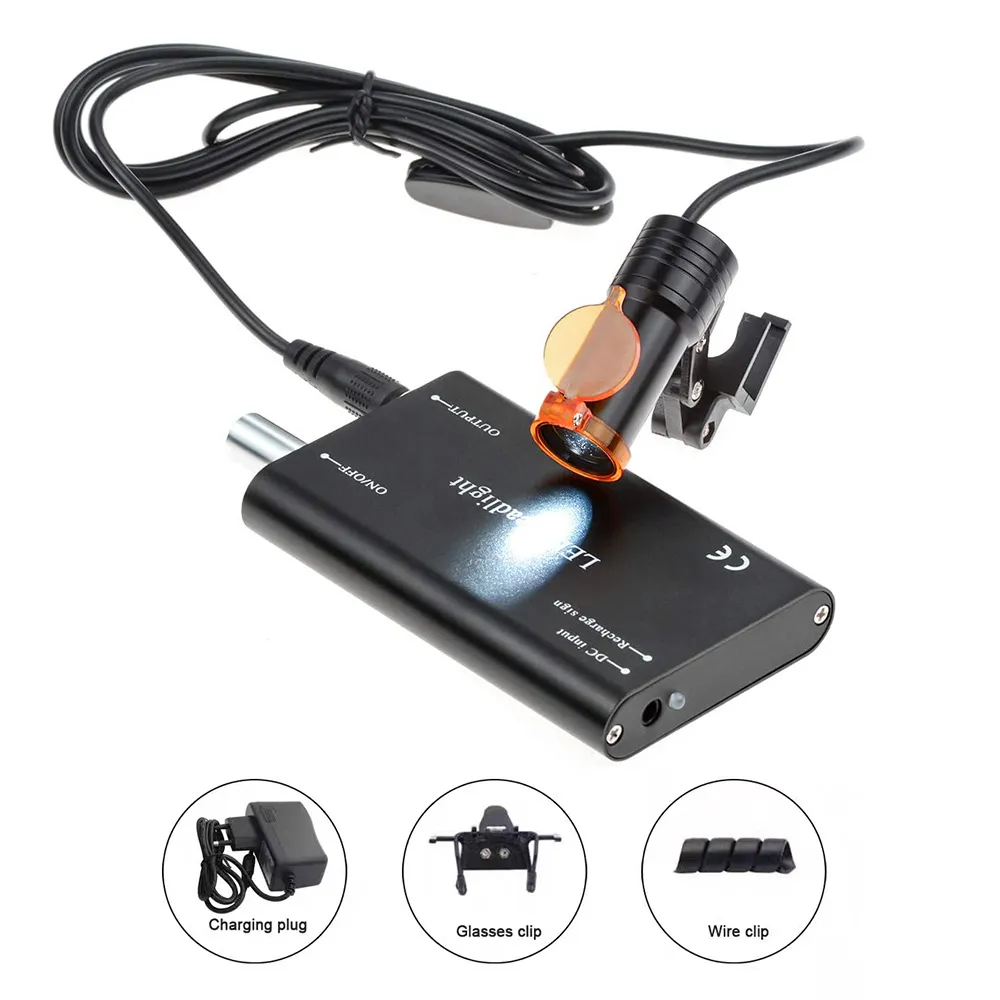

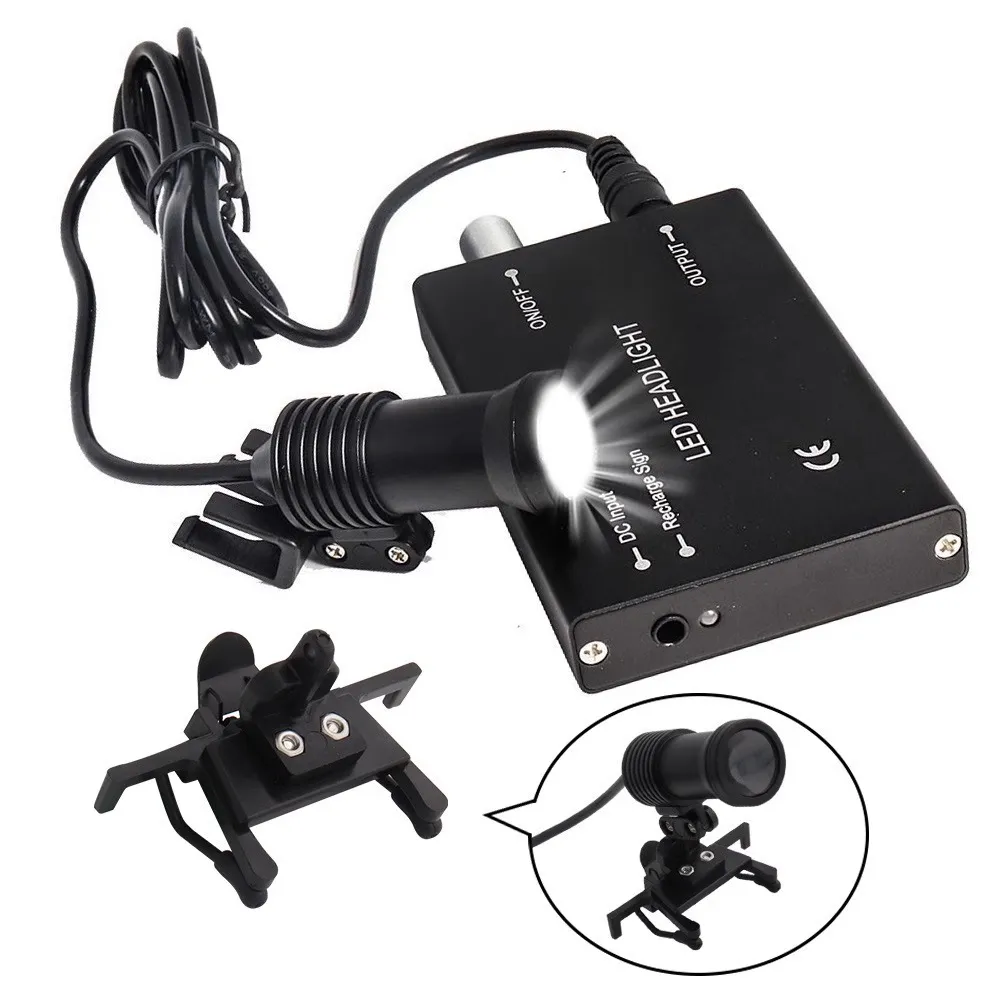

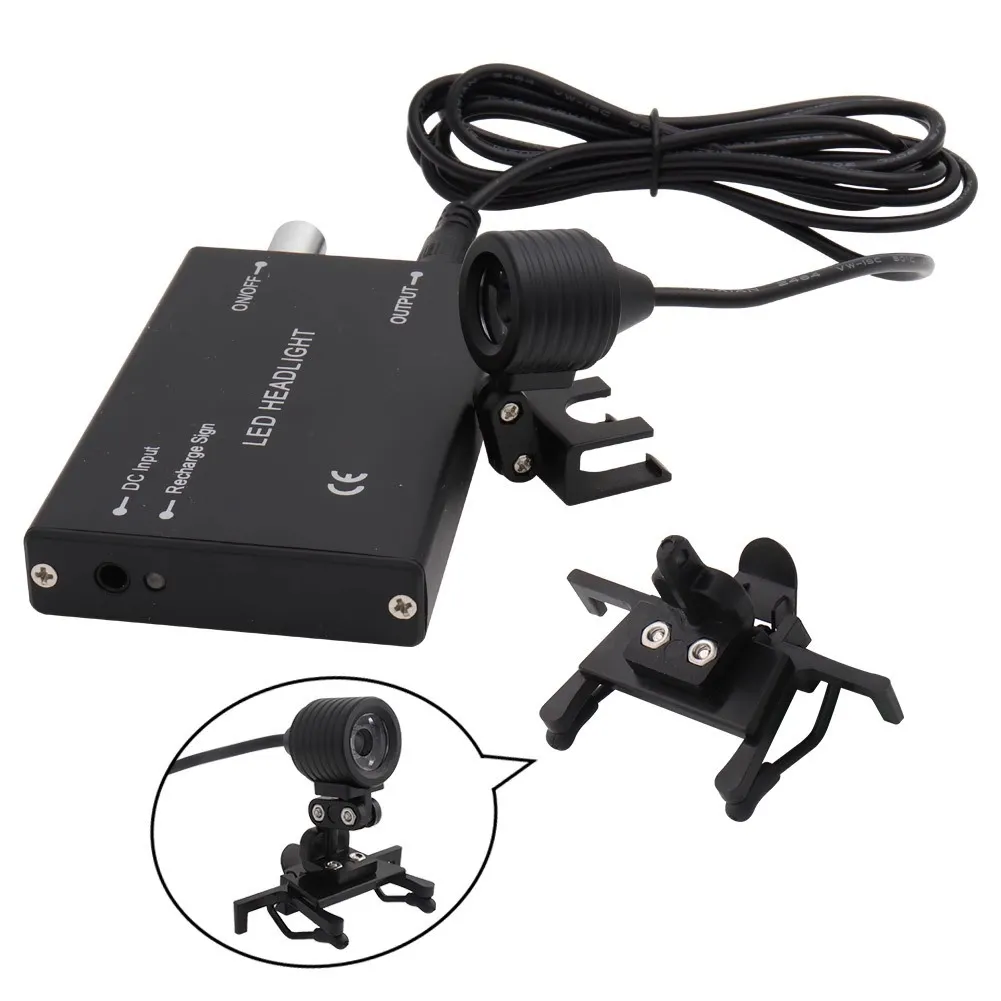

The accompanying clip-on portable LED headlight mounts directly onto the loupe bridge, projecting a coaxial 15,000 to 30,000 Lux beam aligned with the user's line of sight. Powered by a belt-clip rechargeable lithium-ion battery pack, the light delivers approximately 5 hours of continuous operation per charge.
| Technical Parameter | 2.5X Configuration | 3.5X Configuration |
| Brand | AMEXORS | AMEXORS |
| Loupe Mounting Style | Flip-Up Hinge on Safety Eyeglass Frame | Flip-Up Hinge on Safety Eyeglass Frame |
| Magnification Power | 2.5X | 3.5X |
| Working Distance Range | 320 mm – 420 mm | 320 mm – 420 mm |
| Field of View (FOV) | 100 mm | 60 mm |
| Depth of Field (DOF) | 90 mm | 80 mm |
| Interpupillary Adjustment | Manually Adjustable via Center Dial | Manually Adjustable via Center Dial |
| Viewing Angle (Declination) | Multi-Joint Hinged Angular Adjustment | Multi-Joint Hinged Angular Adjustment |
| Headlight Power Options | 3W / 5W LED | 3W / 5W LED |
| Illumination Intensity | 15,000 – 30,000 Lux (Adjustable) | 15,000 – 30,000 Lux (Adjustable) |
| Continuous Runtime | Approx. 5 Hours | Approx. 5 Hours |
| Battery Type | Rechargeable Lithium-Ion Battery Pack | Rechargeable Lithium-Ion Battery Pack |
| Charger Input Voltage | 100–240V AC, 50/60Hz | 100–240V AC, 50/60Hz |
