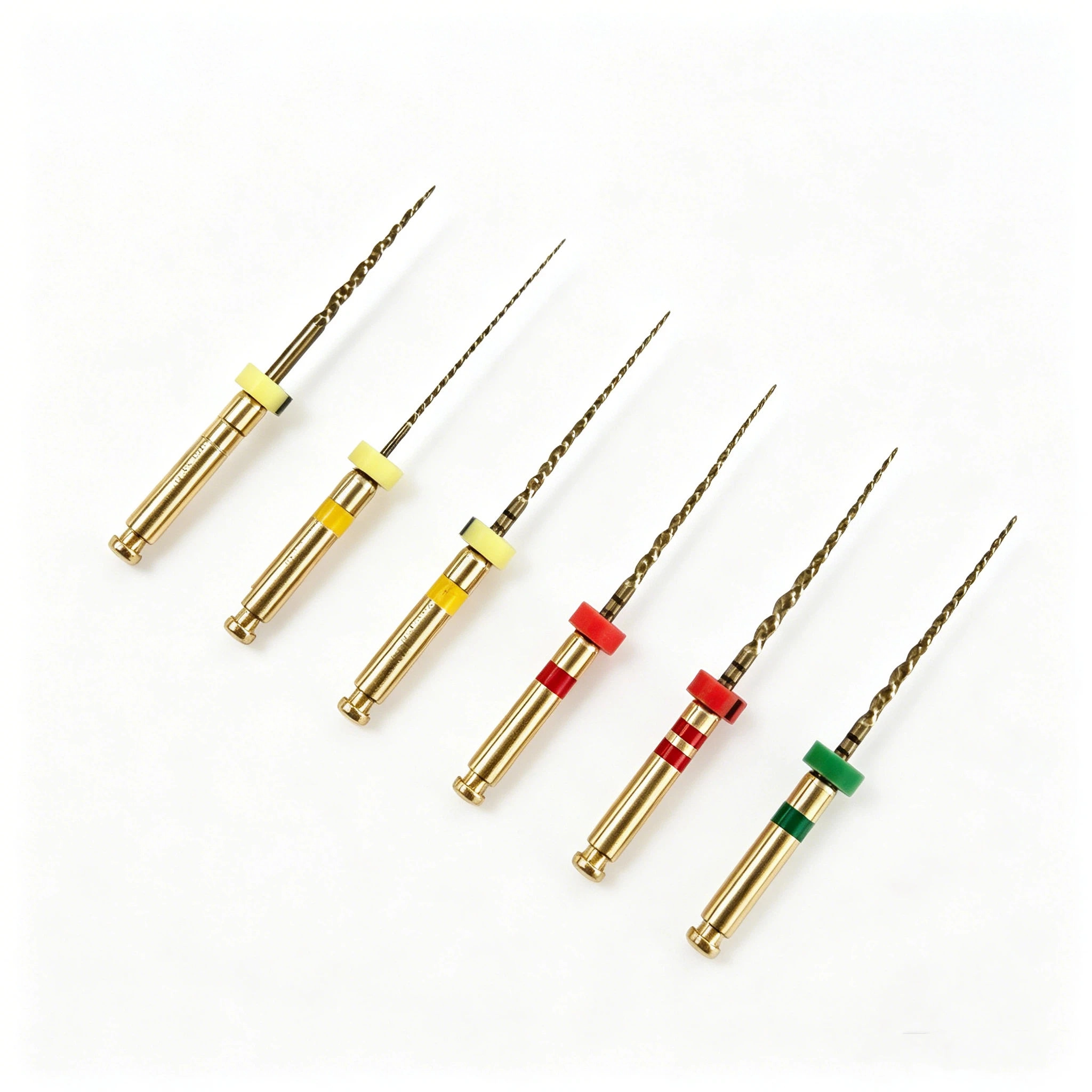

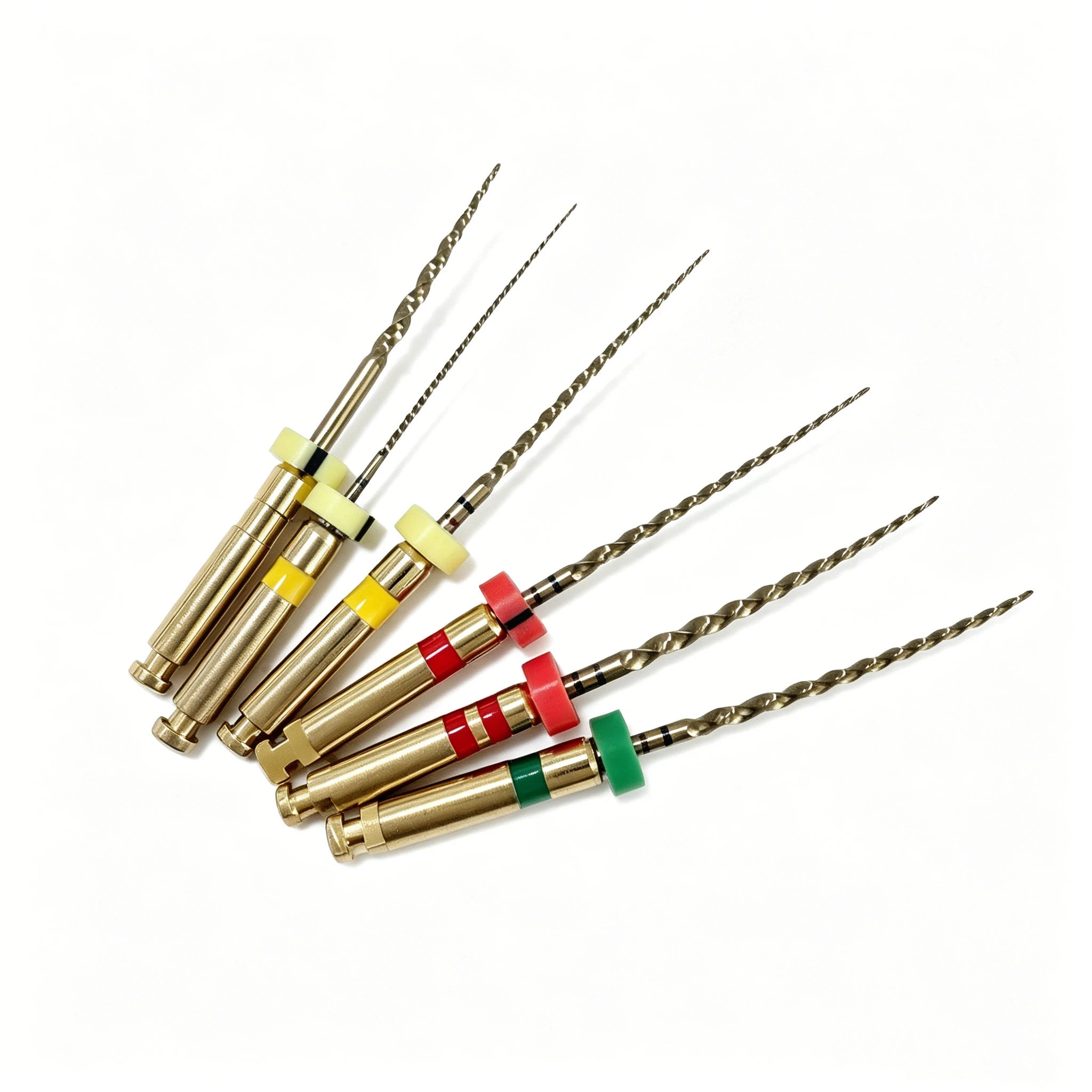

AMEXORS Gold Heat-Activated NiTi Rotary Files SX-F3 Controlled Memory
Manufactured using post-machining gold thermal activation, these NiTi rotary files balance cyclic fatigue resistance with torsional cutting stability for standard and narrow root canal preparation. Supplied in the SX–F3 progressive taper sequence for predictable crown-down instrumentation.
Key Specifications
Product Category: Endodontic NiTi Rotary Files
Metallurgy & Surface: Gold-Phase Heat-Activated NiTi Alloy
File Sequence: SX, S1, S2, F1, F2, F3 (Assorted or Single Sizes)
Available Lengths: 19mm (SX), 21mm, 25mm, 31mm
Cross-Section Design: Convex Triangular Cross-Section
Recommended Speed & Torque: 250–350 RPM | 1.5–3.0 N·cm
Packaging: 6 pcs / blister pack
The AMEXORS Gold Heat-Activated NiTi Rotary Files utilize a post-grinding thermal treatment process that forms a characteristic gold titanium-oxide surface layer. By adjusting the phase transformation temperature of the NiTi wire, the instrument maintains a balanced austenite-martensite metallurgical profile. Compared to conventional superelastic NiTi files, this gold-phase alloy offers controlled memory characteristics and improved resistance to cyclic fatigue when navigating middle and apical third curvatures.
The sequence is organized into three shaping files (SX, S1, S2) with progressive variable tapers for coronal and middle third enlargement, followed by three finishing files (F1, F2, F3) with fixed apical tapers for precise apical preparation. Each instrument features a non-cutting guidance tip to reduce the risk of ledges or perforations, along with depth calibration markings and color-coded silicone stops for working length control.
| Technical Parameter | Specification / Description |
| Brand | AMEXORS |
| Product Category | Endodontic NiTi Rotary Files |
| Alloy & Heat Treatment | Gold Thermal-Activated Nickel-Titanium (NiTi) |
| Cross-Sectional Geometry | Convex Triangular Cross-Section |
| Tip Design | Non-Cutting Guidance Tip |
| Shaping Files Specification | SX (#19), S1 (#18), S2 (#20) — Progressive Variable Taper |
| Finishing Files Specification | F1 (#20/.07), F2 (#25/.08), F3 (#30/.09) — Fixed Apical Taper |
| Available Working Lengths | 19mm (SX), 21mm, 25mm, 31mm |
| Motion Type | 360° Continuous Clockwise Rotation |
| Recommended Rotational Speed | 250 – 350 RPM |
| Recommended Torque | 1.5 – 3.0 N·cm |
| Sterilization | Autoclavable up to 134°C – 135°C |
| Packaging Configuration | 6 Pieces per Blister Pack (Assorted SX–F3 or Single Size) |
