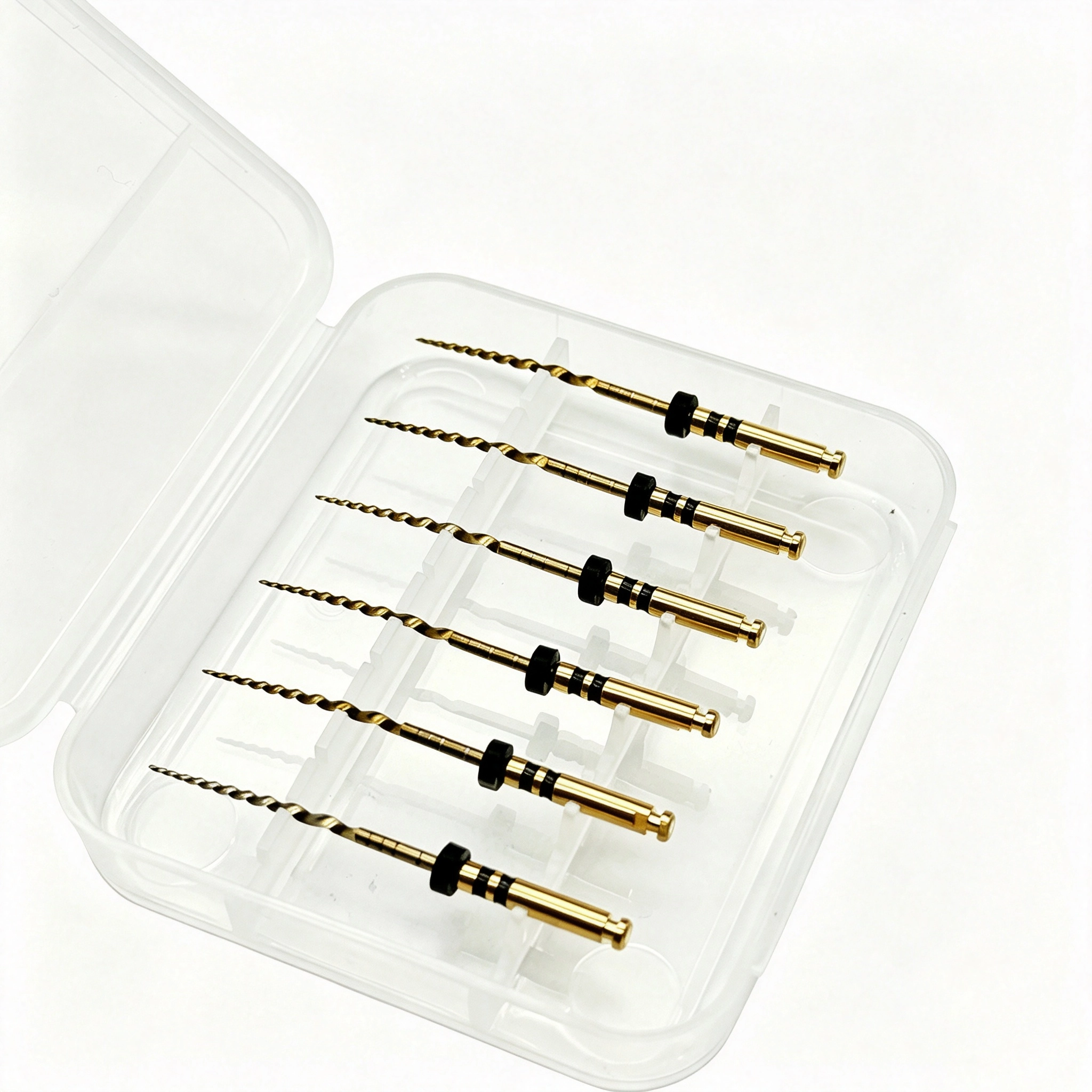

AMEXORS Large-Diameter NiTi Rotary Files F4-F5 #40-#50 Apical Finishing
Designed as supplementary apical finishing instruments for wide root canals, these F4 (#40) and F5 (#50) NiTi rotary files utilize heat-treated metallurgy to maintain flexibility despite their larger core diameters.
Key Specifications
Product Category: Supplementary Apical Finishing NiTi Rotary Files
Available Sizes: F4 (#40 Tip) and F5 (#50 Tip)
Apical Taper: .06 Fixed Apical Taper (or Variable Taper — verify per blister label)
Metallurgy: Heat-Treated Flexible Nickel-Titanium (NiTi) Alloy
Available Lengths: 21mm, 25mm, 31mm
Recommended Speed & Torque: 250–350 RPM | 2.0–3.0 N·cm
Packaging: 6 pcs / blister pack (Single Size F4, Single Size F5, or Assorted)
In wide anatomical root canals—such as maxillary central incisors, palatal roots of maxillary molars, canines, or teeth with immature apices—an F3 (#30) instrument is often insufficient to achieve thorough apical debridement and tug-back fit. The AMEXORS Large-Diameter F4 (#40) and F5 (#50) NiTi Rotary Files extend the standard SX–F3 sequence to provide accurate apical gauging and finishing for wide canal morphologies.
Because metal stiffness increases significantly as instrument diameter expands to #40 and #50, conventional austenitic large-size files can create apical ledges or zipping. To mitigate this risk, AMEXORS manufactures the F4 and F5 files using heat-treated NiTi wire combined with a modified cross-section that reduces core mass, allowing the larger-diameter tips to negotiate gentle apical curves without excessive lateral stiffness.
| Technical Parameter | Specification / Description |
| Brand | AMEXORS |
| Product Category | Large-Diameter Apical Finishing NiTi Rotary Files |
| Alloy & Metallurgy | Heat-Treated Nickel-Titanium (NiTi) Alloy |
| File Models & Tip Sizes | F4 (ISO #40 Tip, Black Ring) / F5 (ISO #50 Tip, Yellow Ring) |
| Taper Specification | .06 Taper (F4: #40/.06, F5: #50/.06) |
| Available Working Lengths | 21mm, 25mm, 31mm |
| Cross-Sectional Geometry | Modified Triangular / Variable Core Cross-Section |
| Tip Design | Non-Cutting Safe Guidance Tip |
| Motion Type | 360° Continuous Clockwise Rotation |
| Recommended Rotational Speed | 250 – 350 RPM |
| Recommended Torque | 2.0 – 3.0 N·cm |
| Sterilization | Autoclavable up to 134°C – 135°C |
| Packaging Configuration | 6 Pieces per Blister Pack (F4 Single Pack, F5 Single Pack, or F4/F5 Assorted) |
